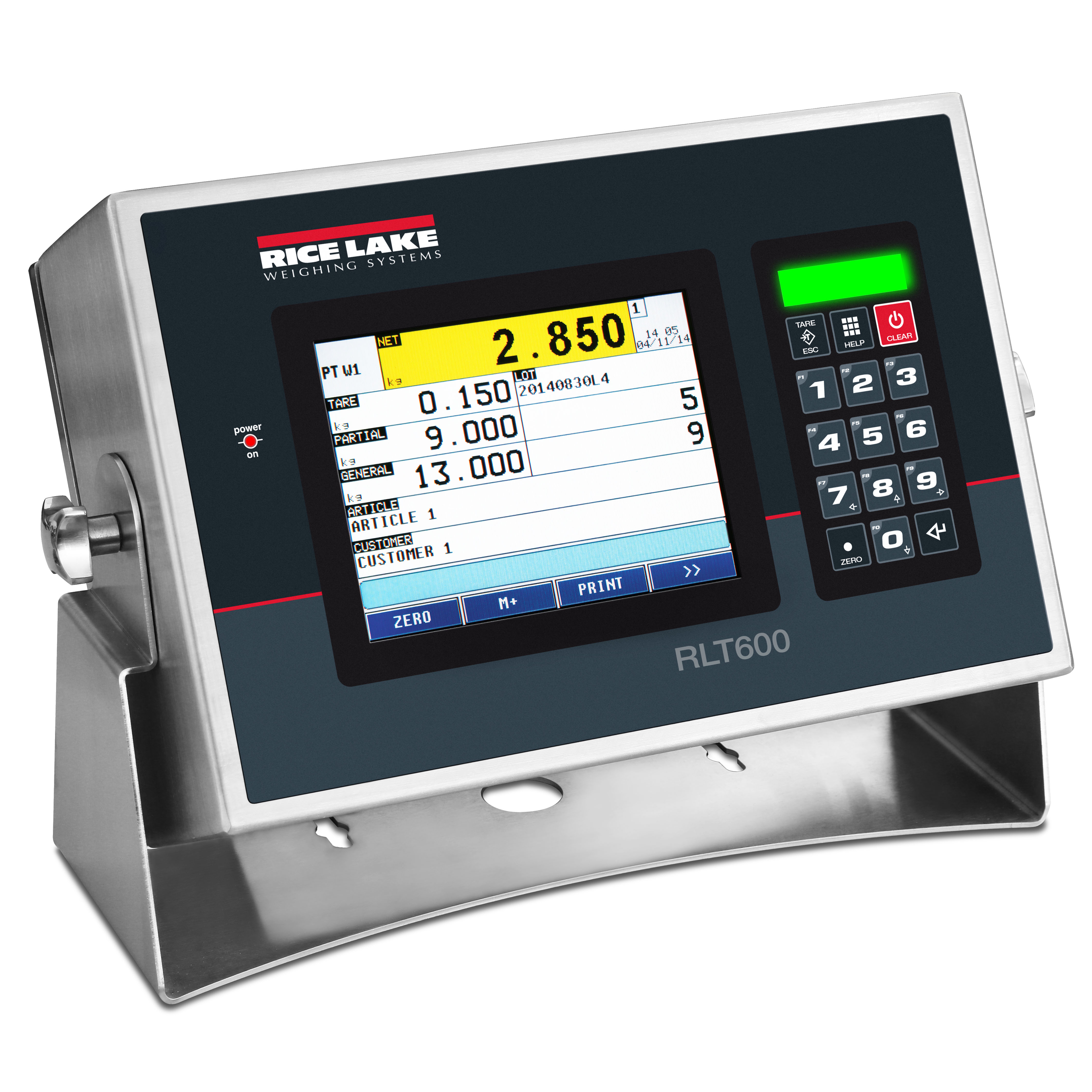

RLT600 Touch Screen Weight Indicator for Industrial Applications

• Backlit graphic display with touch screen technology, L × H = 120 × 90 mm size
• Multilanguage software
• 15-key alphanumerical waterproof keyboard
• 3-way control light
• Selectable QWERTY, AZERTY or QWERTZ keyboard integrated in the touch screen
• Stainless steel waterproof IP68 enclosure (optional IP69K design)
• Suitable for use on the table, column or wall
• Real-time clock and permanent data storage
• Supplied with alibi memory, integrated on the motherboard
• Slot for built-in micro SD for recording the configuration, logos, and customized screens (upon request)
• Functions available with DINITOOLS utility
  Configuration, data entry
  and print formatting
  Recording and filing of all the
  information on PC
  Complete retrieval of the configuration
  Instrument calibration with
  numeric values
  Customization of the screens
• 24-bit A/D converter, 4 channels, up to 3200 conv./sec. and up to 8 signal linearization points
• 4 independent analogue channels (up to 2 in the E-AF03 version) for reading of the weight
• Connection with up to 16 analogue load cells of 350 Ohm (45 load cells of 1000 Ohm)
  and with the main digital load cells available on the market (mod. E-AF03).
• Management of the most common digital load cells for weigh bridges (with DIGIKIT option and
  AF03GT firmware), also for applications with CE-M approval.
• Up to 10.000e OIML or 3 × 3000e @ 0,3 μV/e CE-M legal for trade.
• Up to 1.000.000 displayable divisions for internal factory use, with internal resolution
  up to 3.000.000 points.
• Connectable to printer and labelers with free programmation of the printout formats
• 110-240 Vac power supply.
• AF01 Application software: Totalization and formula weighing

Optional (Application Software)

AF02: Pieces/quantity counting
AF03: Weighbridges - Input/Output vehicle
AF04: Statistical checking of prepackaged goods
AF05: Price computing and industrial labeling
AF08: Wheel and axle static weighing with 2 or various platforms
AF09: Dynamic and static axle weighing with 2 platforms
BATCH1: Single product dosage systems in loading and unloading
BATCH: Multicomponent dosage systems in loading and unloading
(IOEXPB board must be included)
