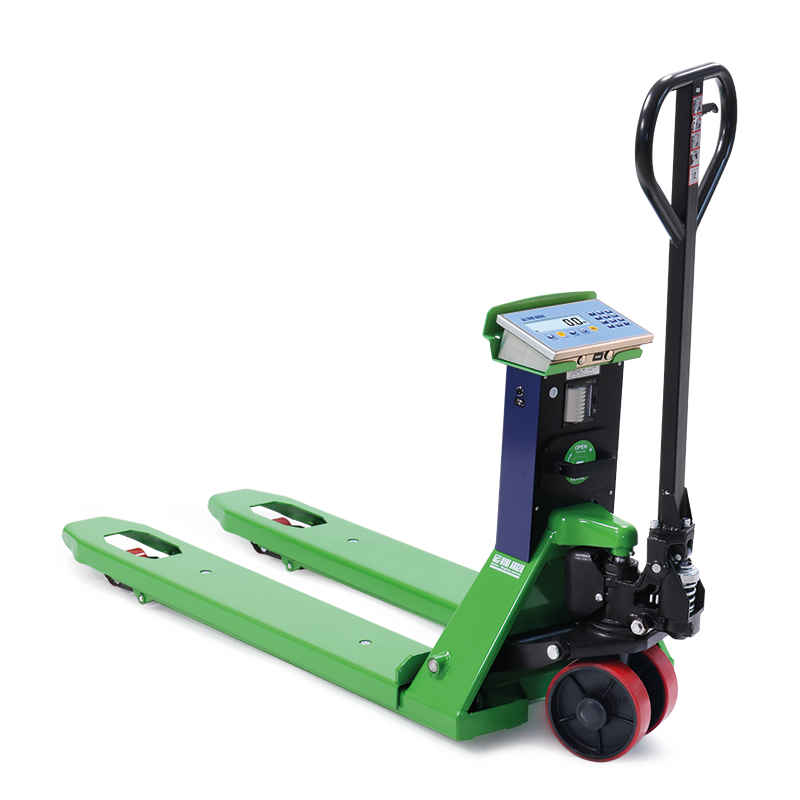

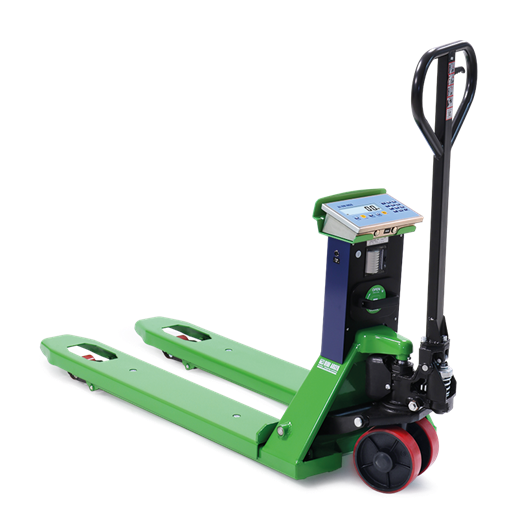

TPWLK "LOGISTICS" SERIES PALLET TRUCK SCALE
Professional pallet truck scale with extractable rechargeable Instaplug battery and printer for tracking the weighing operations. Available in approved version for use with third parties.
Manufactured, calibrated and adjusted in Italy by Dini Argeo, with the use of certified sample weights.
• Maximum lifting capacity: 2,000 kg.
• Resolution:
> internal use: 0,2 kg
> approved: 0,5 / 1 kg
• Accuracy (weighing of goods on Europallet with distributed load):
> internal use: +/- 1 kg
> approved: according to EC certification (Directive 2014/31/EU)
Configuration, calibration and diagnostics from keyboard or PC with DINITOOLS.
Standard Features
- Professional pallet truck scale, approved for legal-for-trade use.
- Available with printer for tracking the weighing operations.

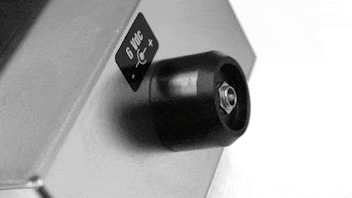

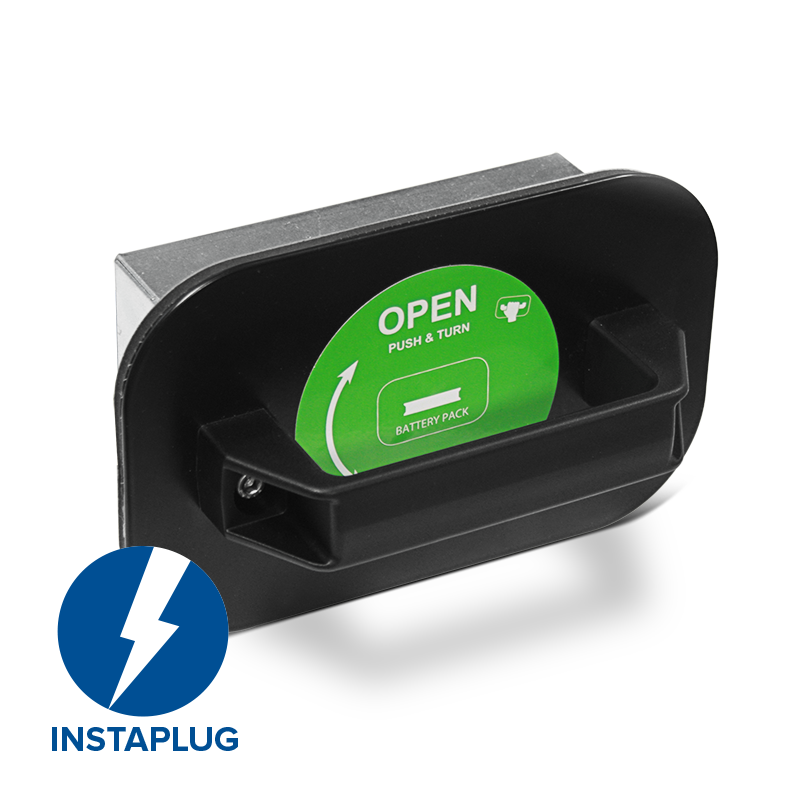

- Rechargeable extractable battery with "Instaplug" technology, quick connection, anti-reverse, and about 80-hour battery life (expandable for continuous use using the double battery).
- Built with 4 IP68 stainless steel load cells.
- Programmable automatic switch-off which lengthens the working autonomy, with battery level indication.
- The large backlit 25 mm LCD display allows an easier reading also in low light conditions.
Each pallet truck is tested and supplied with a certificate to guarantee the declared accuracy
Specifications
|
Forks with low profile, only 85 mm Fork dimensions 1150 x 550 x 85 mm (wide forks version upon request) Lifting height 200 mm Weight 113 kg approx. (without packaging) Structure in extra-thick steel, oven-fire painted Protection rating IP65 (IP20 for models with printer) |

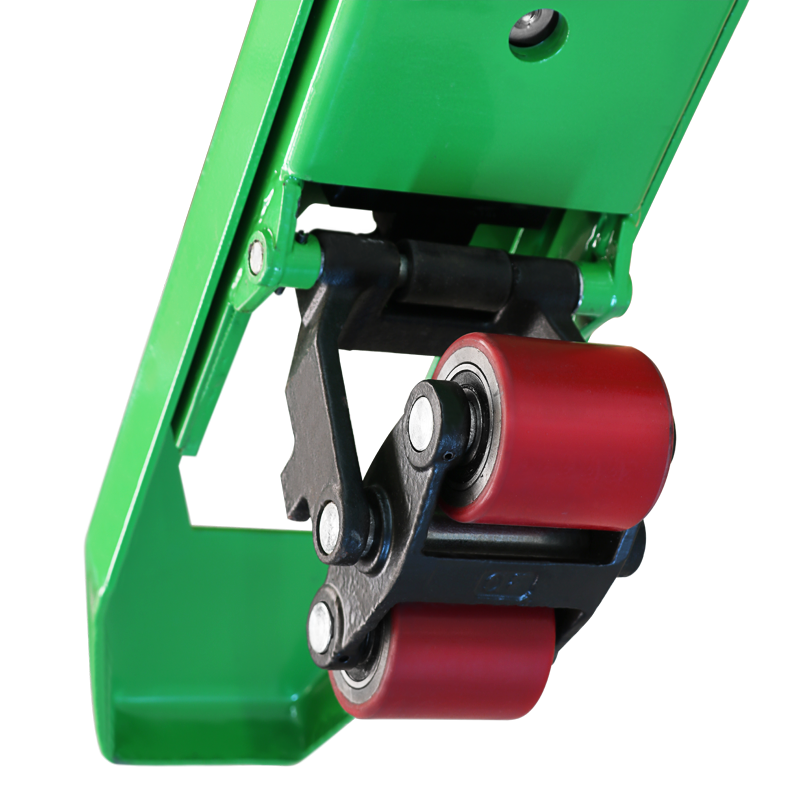

Driving wheels and loading rollers in polyurethane Waterproof and functional keyboard with 17 keys, with indications for quick recall of the main functions and adjustments Quick-lift hydraulic pump Battery charger 230Vac 50 Hz with EU plug included (charging time approx. 8 hours) (Optional UK, AU, US plug) |
Two-way port for modem, radio or portable terminal Thermal printer in TPWLKP and TPWLKPM versions, including clock/calendar Customizable printing format Temperature of use: -10° /+40° |

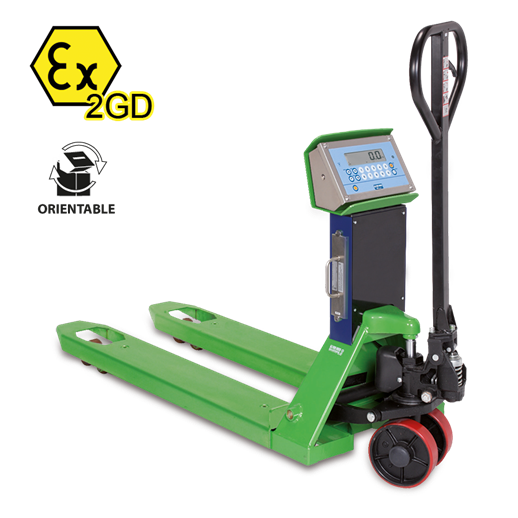

TPW EX 2GD ATEX PALLET TRUCK SCALE ZONES 1/21 & 2/22
ATEX pallet truck scale for use in hazardous areas (ZONES 1 & 21 & 2 & 22) with Ex II 2G IIB T4 Gb X and Ex II 2D IIIC T197°C Db X protection.
Also available in a version approved for legal-for-trade use. Manufactured, calibrated and adjusted in Italy by Dini Argeo, using certified sample weights.
- Maximum lifting capacity: 2,000 kg.
- Resolution:
> internal use: 0,2 kg
> approved: 0,5 / 1 kg - Accuracy (weighing of goods on Europallet with distributed load):
> internal use: +/- 0,5 kg
> approved: according to CE certification (Directive 2014/31/EU) - Calibration and Set-Up parameters configurable from keyboard.
Standard Features
-
Pallet truck scale made with ATEX certified components, suitable for use in hazardous areas (zones 1 and 21 & 2 and 22).
-
Thanks to the resolution up to 100 g, it can weigh with the highest accuracy.
-
Available in approved version for legal-for-trade use.
-
Removable battery, rechargeable in safe area, connectable and disconnectable to the weighing system even in hazardous area.
-
Autonomy of about 150 hours, or 24/7 with optional second rechargeable battery.
-
Built with 4 Dini Argeo load cells, Atex certified, in IP68 stainless steel.
-
Weight indicator with waterproof casing in IP68 stainless steel, easy to clean and resistant in harsh and corrosive environments.
-
The large 25 mm LCD display makes it easier to read even in low light conditions.
-
Each pallet truck is tested and supplied with calibration certificate to guarantee the declared accuracy.
Specifications
|
Forks with low profile, only 85 mm Forks dimensions 1150 x 550 x 85 mm Lifting height: 200 mm Weight approx. 125 kg |
Bearing structure in extra-thick steel, oven-fire painted (Optional stainless steel forks) Standard swivelling head +/-160° Steering wheels and double loading wheels with polyurethane coating |
Membrane waterproof keyboard, with 17 numeric/functional keys Dini Argeo electronics, ATEX certified, intrinsically safe 230Vac 50Hz battery charger with EU, US, UK, AU plugs as standard (charging time 8 hours) for charging in a safe area Temperature range: -10° / +40° C |
