Rice Lake India Checkweighers

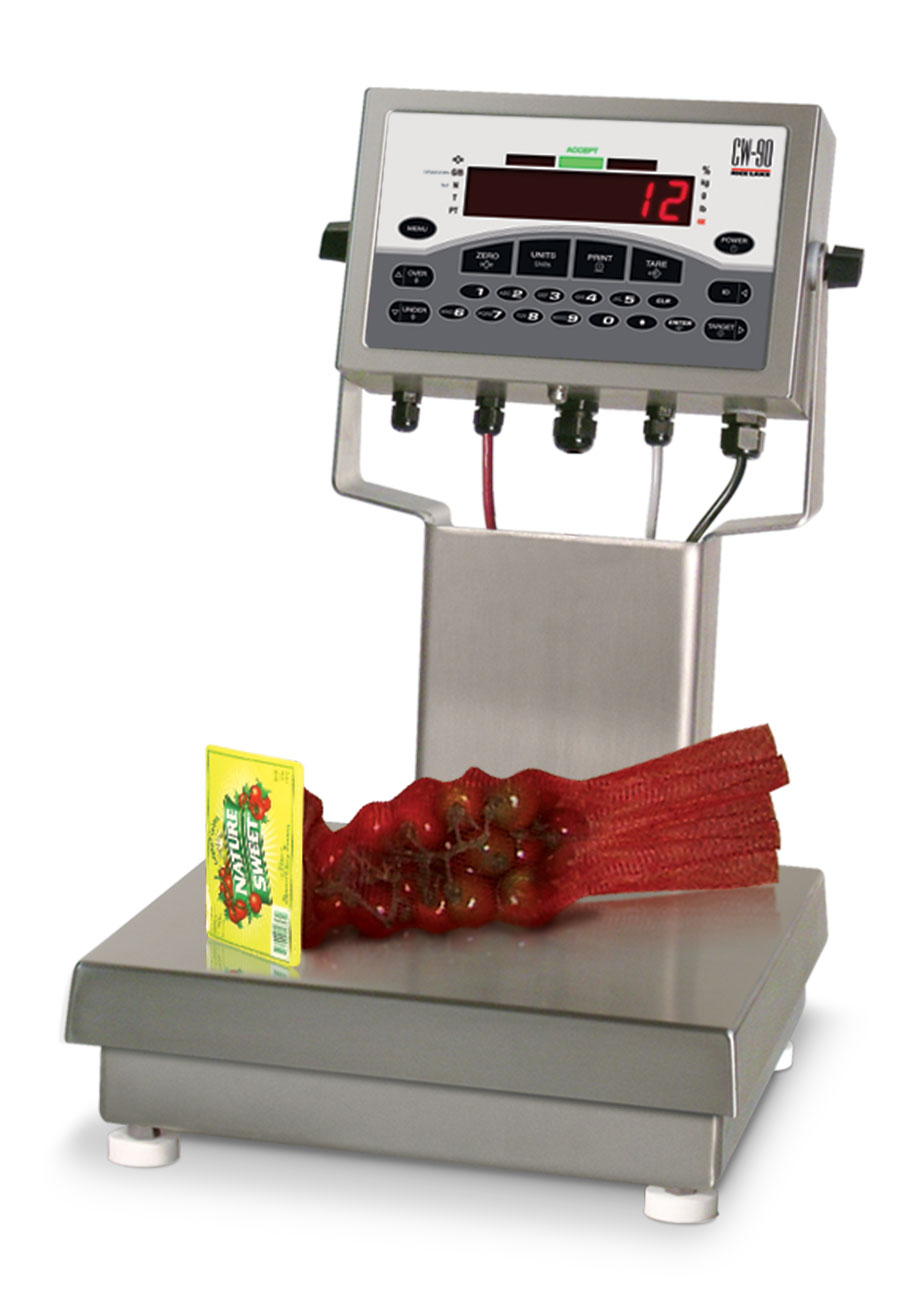

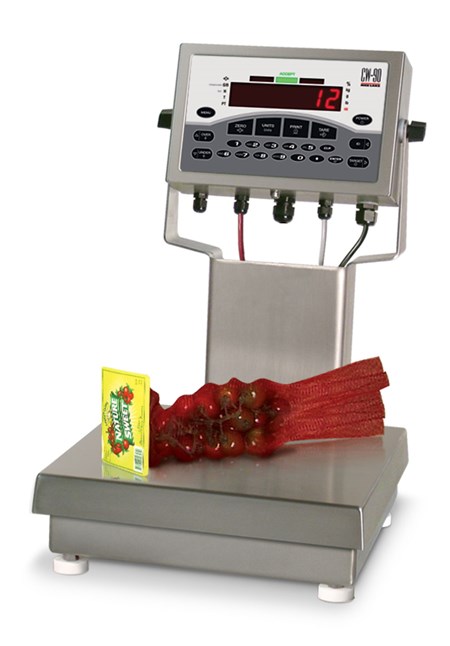

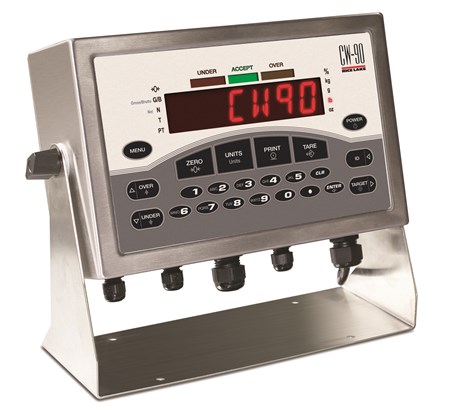

CW-90 Over/Under Checkweigher

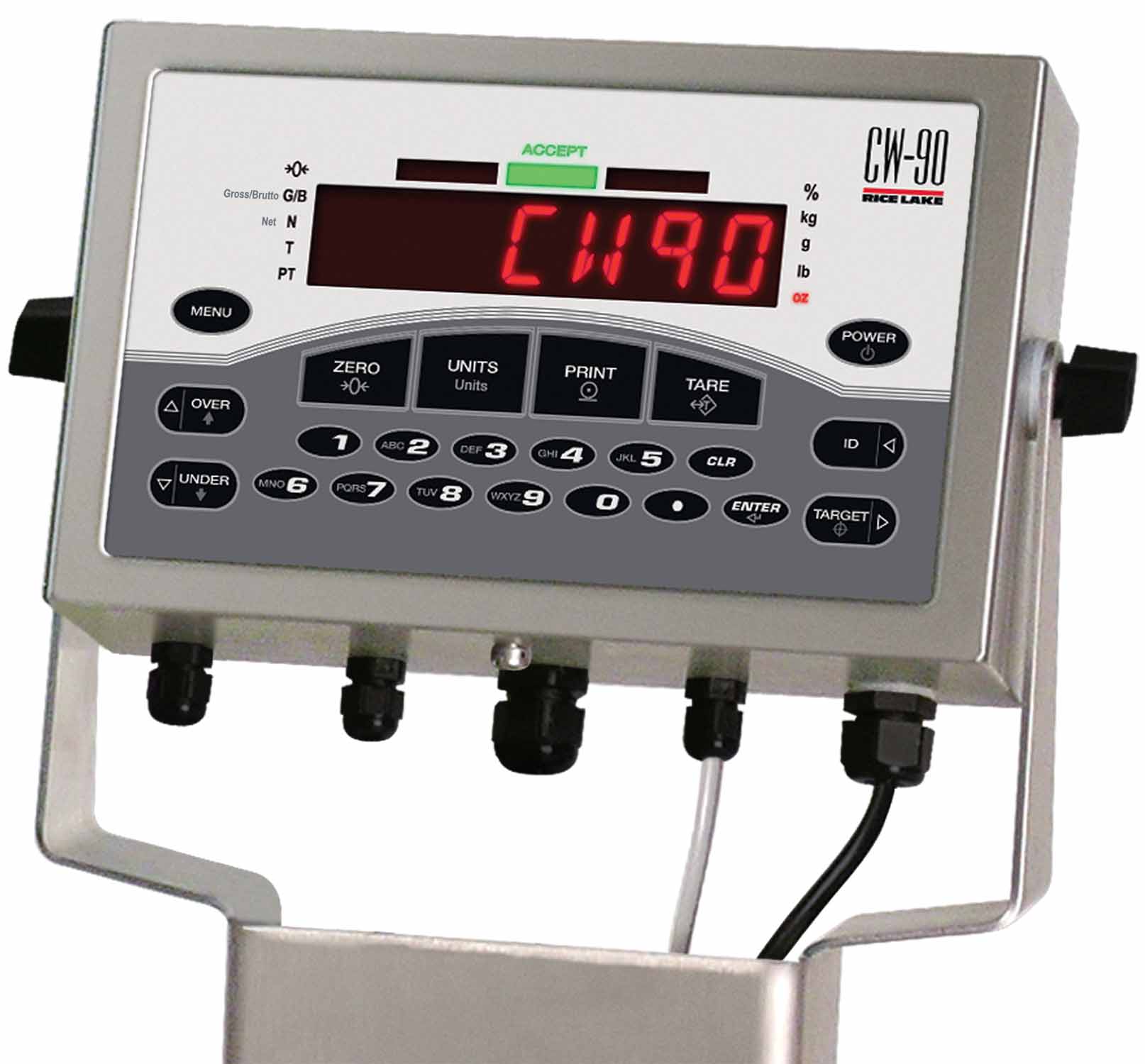

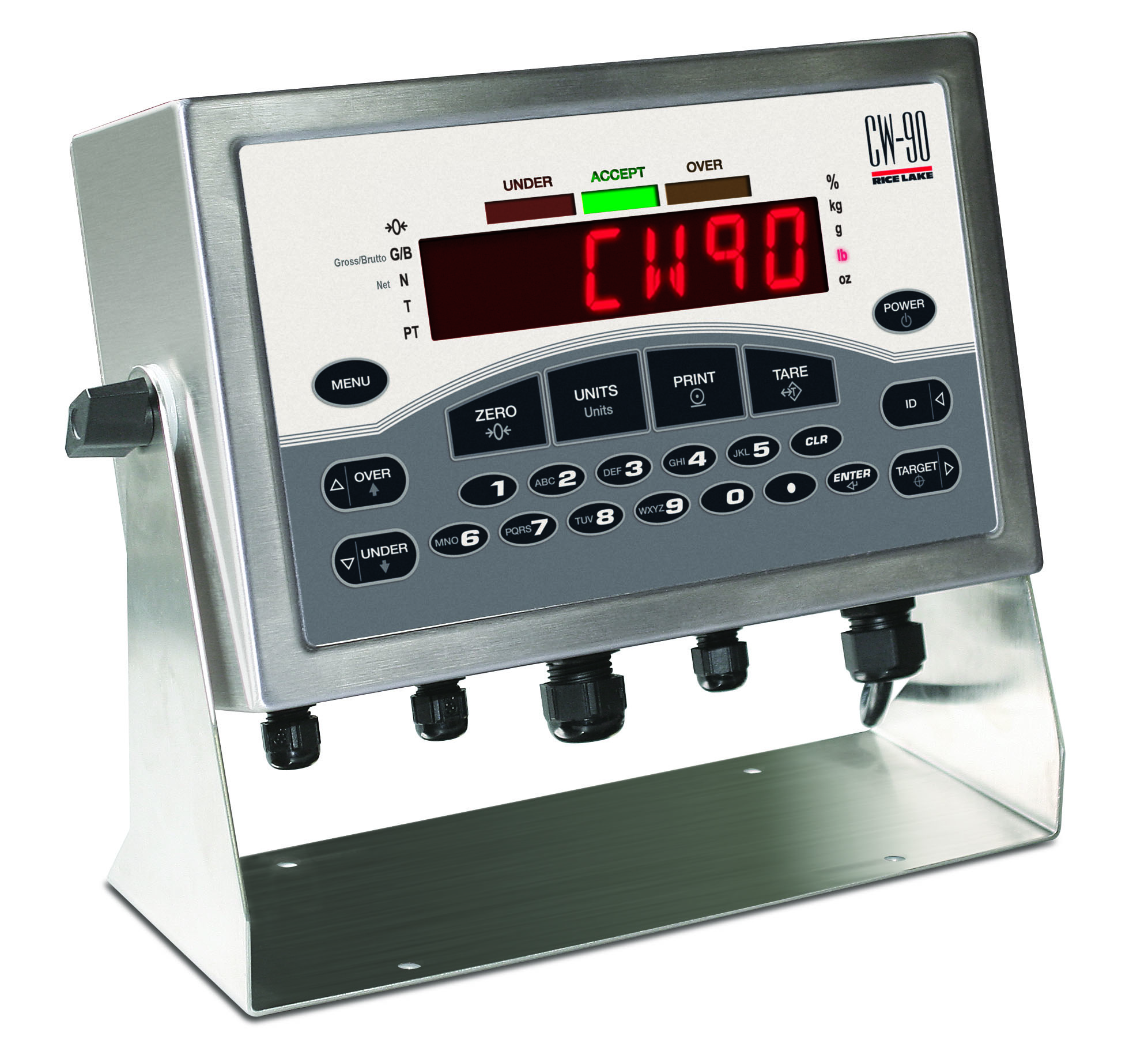

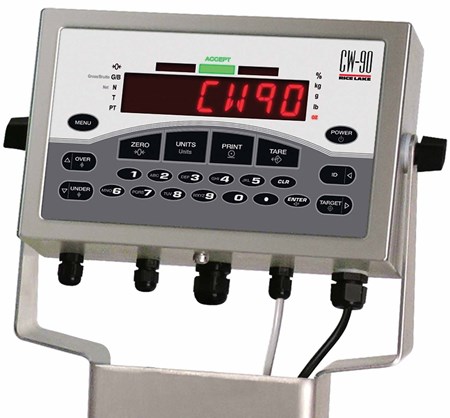

Membrane keypad consisting of zero, units, print, tare, over, under, ID, target, 0-9, clear, decimal, enter, menu, power
304 stainless steel, IP66 rated indicator

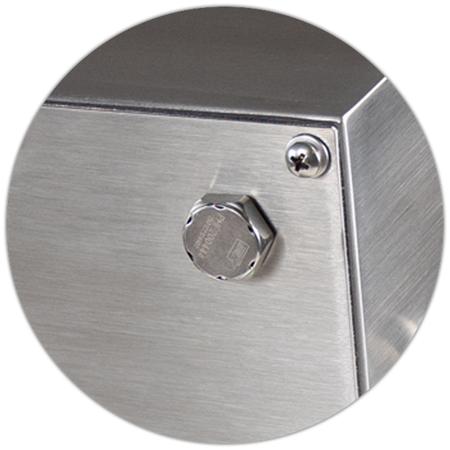

PreVent™ breather vent
Storage for up to 50 IDs
Unit of measure: kg, gm, lb, oz, lb/oz (lb/oz is not Legal for Trade)
High-intensity LED display
Battery backed time and date
Two full duplex RS-232 serial ports
Configurable print formats
Audit trail tracking
Optional communications: Ethernet, USB or fiber optic
Four configurable Digital I/O
Reflash memory to upgrade firmware

Scale:

Aluminum, environmentally sealed load cell
304 stainless steel
Meets HACCP requirements
Five-point overload protection

Request More Information

CW-90 Over/Under Checkweigher Specifications

Power - AC:
Line voltages:
115/230 VAC
Frequency:
50/60 Hz

Power Consumption:
1.5 A at 115 VAC (8 W)
0.75 A at 230 VAC (8 W)

Measurement Rate:
960,480, 240, 120, 60, 30, 15, 7.5 per second

System Linearity:
±0.01% full scale

Digital I/O:
Four channels on CPU board

Circuit Protection:
RFI, EMI, ESD protection

Display:
Large 0.8 in, 14 segments, six-digit high-intensity red
LED display

Status Annunciators:
Designators for %, kg, gm, lb, oz, center of zero, G/B,
N, T, PT, neg, motion

Operating Temperature:
Legal: -10º C to 40º C (14º F to 104º F)

Rating/Material:
IP66, stainless steel

Display Resolution:
100,000 graduations maximum

Load Cell:
Aluminum, environmentally sealed

Warranty:
Two-year limited warranty

Approvals:
Indicator:
NTEP CC 08-092, Class III/IIIL 10,000 d
Measurement Canada AM-5710, Class III 10,000 d
OIML R76/2006-GBI-10.02
TC11569
T10807
UL and CUL listed
CE marked
Scale:
NTEP CC 95-072, Class III 5,000 d
Measurement Canada AM-5082, Class III 5,000 d
NSF

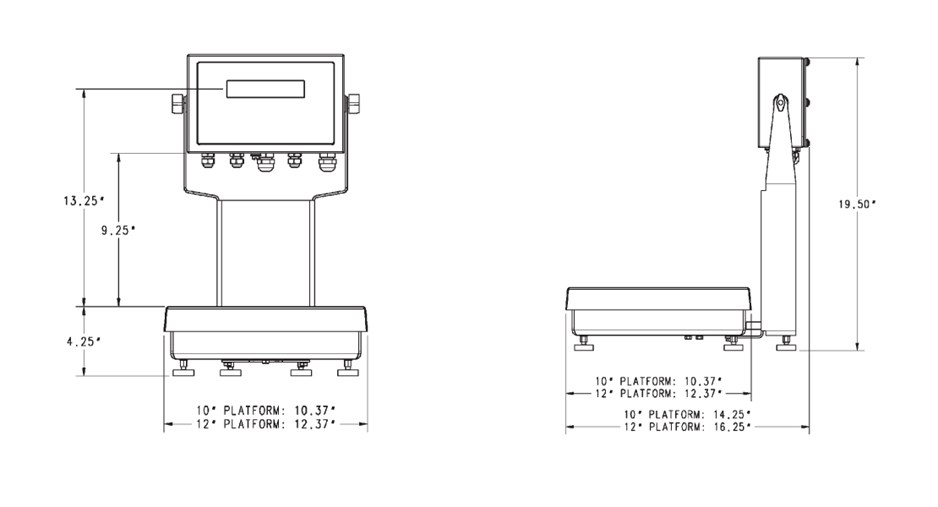

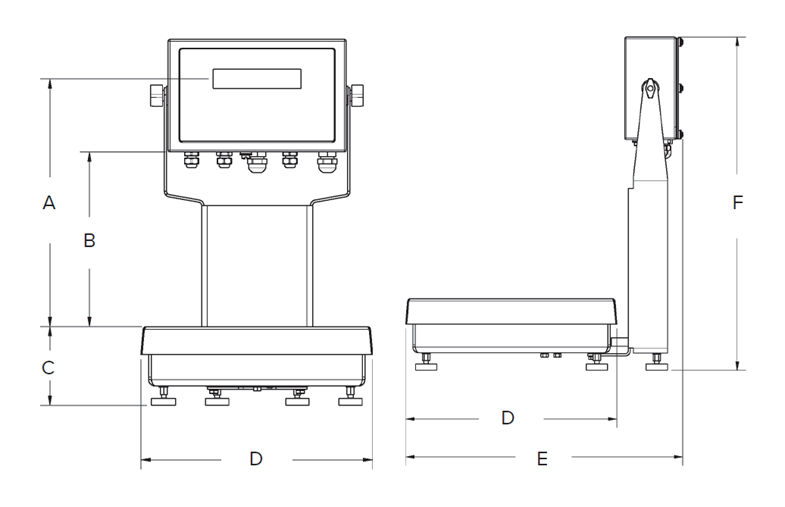

CW-90 Over/Under Checkweigher Dimensions

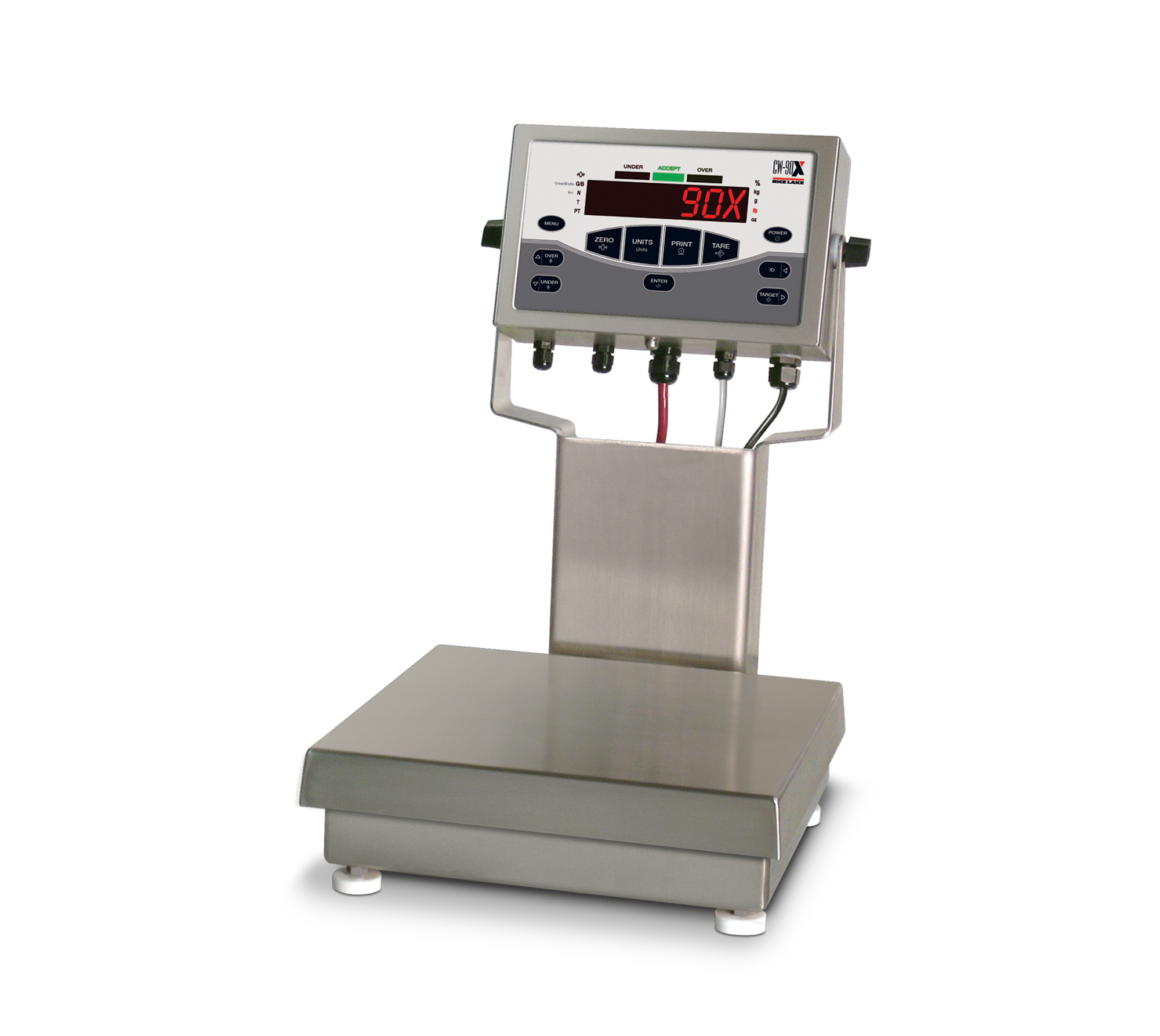

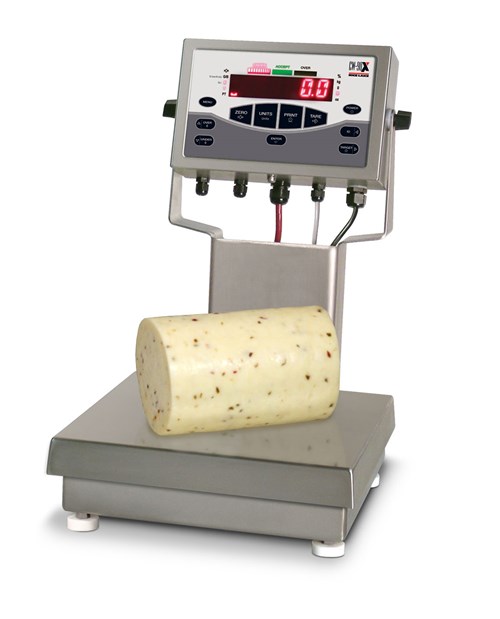

CW-90X Over/Under Checkweighers

Piezo keypad consisting of ZERO, UNITS, PRINT, TARE, OVER, UNDER, ID, TARGET, ENTER, MENU, POWER

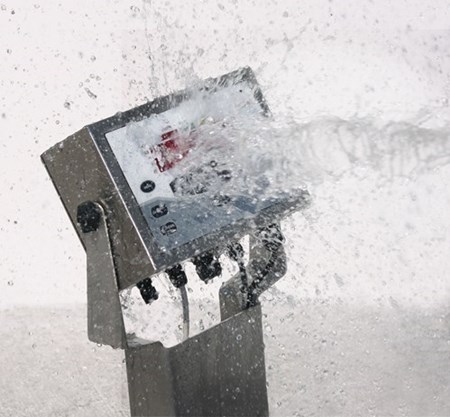

304 stainless steel, IP69K rated indicator
PreVent™ breather vent
Storage for up to 50 IDs
Unit of measure: kg, gm, lb, oz, lb/oz (lb/oz is not Legal for Trade)
High-intensity LED display
Battery backed time and date
Two full-duplex RS-232 serial ports
Configurable print formats
Audit trail tracking
Optional communications: Ethernet, USB or Fiber-optic
Four configurable Digital I/O
Reflash memory to upgrade firmware
Auto print capability
Accumulator
Factory calibrated

Scale Base

IP69K, stainless steel, hermetically sealed load cell
304 stainless steel
Meets HACCP requirements
Five point overload protection

Request More Information

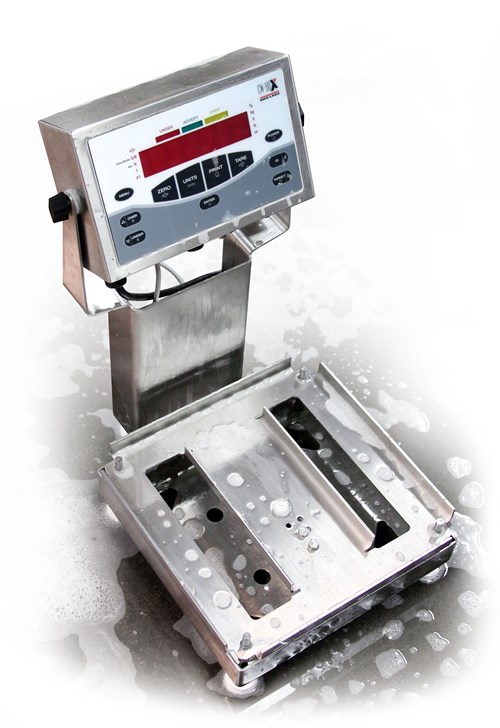

CW-90X Over/Under Washdown Checkweigher Specifications

Power AC:
Line Voltages:
115/230 VAC
Frequency:
50/60 Hz

Power Consumption:
1.5 A at 115 VAC (8 W)
0.75 A at 230 VAC (8 W)

Measurement Rate:
960,480, 240, 120, 60, 30, 15, 7.5 per second

System Linearity:
±0.01% full scale

Digital I/O:
Four channels on CPU board

Circuit Protection:
RFI, EMI, ESD protection

Display:
Large 0.8 in, 14 segment, six digit high-intensity red
LED display

Scale Frame:
AISI304L, straight line finish, Ra=45 +/- 10

Scale Cover:
AISI304L, straight line finish, Ra=45 +/- 10

Annunciators:
Designators for %, kg, gm, lb, oz, center of zero, G/B, N, T, PT, neg, motion

Operating Temperature:
Legal: 14 ºF to 104 ºF (-10 ºC to 40 ºC)

Rating/Material:
IP69K, stainless steel

Resolution:
Display: 100,000

Load Cell:
Stainless steel, hermetically sealed

Warranty:
Three-year limited

Approvals:
Indicator:
NTEP CC 08-092, Class III/IIIL 10,000 d
Measurement Canada AM-5710, Class III 10,000 d
OIML R76/2006-GBI-10.02
TC11569
cULus Listed
CE Marked
Scale:
NTEP CC 95-072, Class III 5,000 d
Measurement Canada AM-5082
NSF
