120/120 Plus Digital Weight Indicator

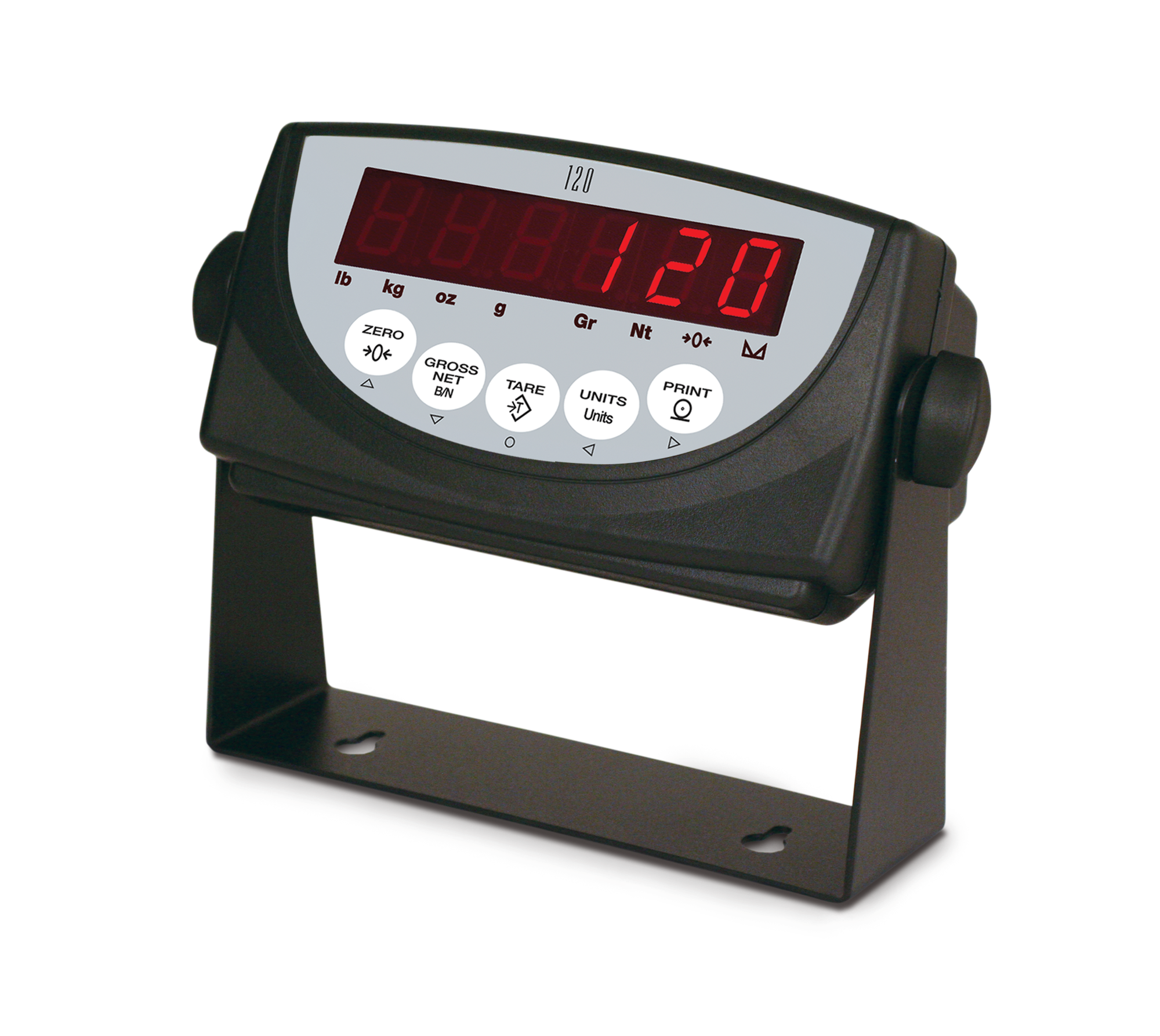

120

  • LED display, 0.8in (20.3mm) six-digit, seven-segment
  • Configurable analog to digital measurement rate
  • Power for four 350ohm load cells
  • Primary/secondary units configuration: lb, kg, ounces, grams
  • Five-button operation
  • Two independent communication ports: (1) full duplex, (1) unidirectional or active 20mA current loop
  • Standardized EDP command sets
  • Programmable ticket format up to two 180-character printout
  • Full front-panel digital calibration and configuration
  • Tilt stand
  • Three-stage digital filtering
  • Consecutive transaction numbering
  • Time and date (volatile)

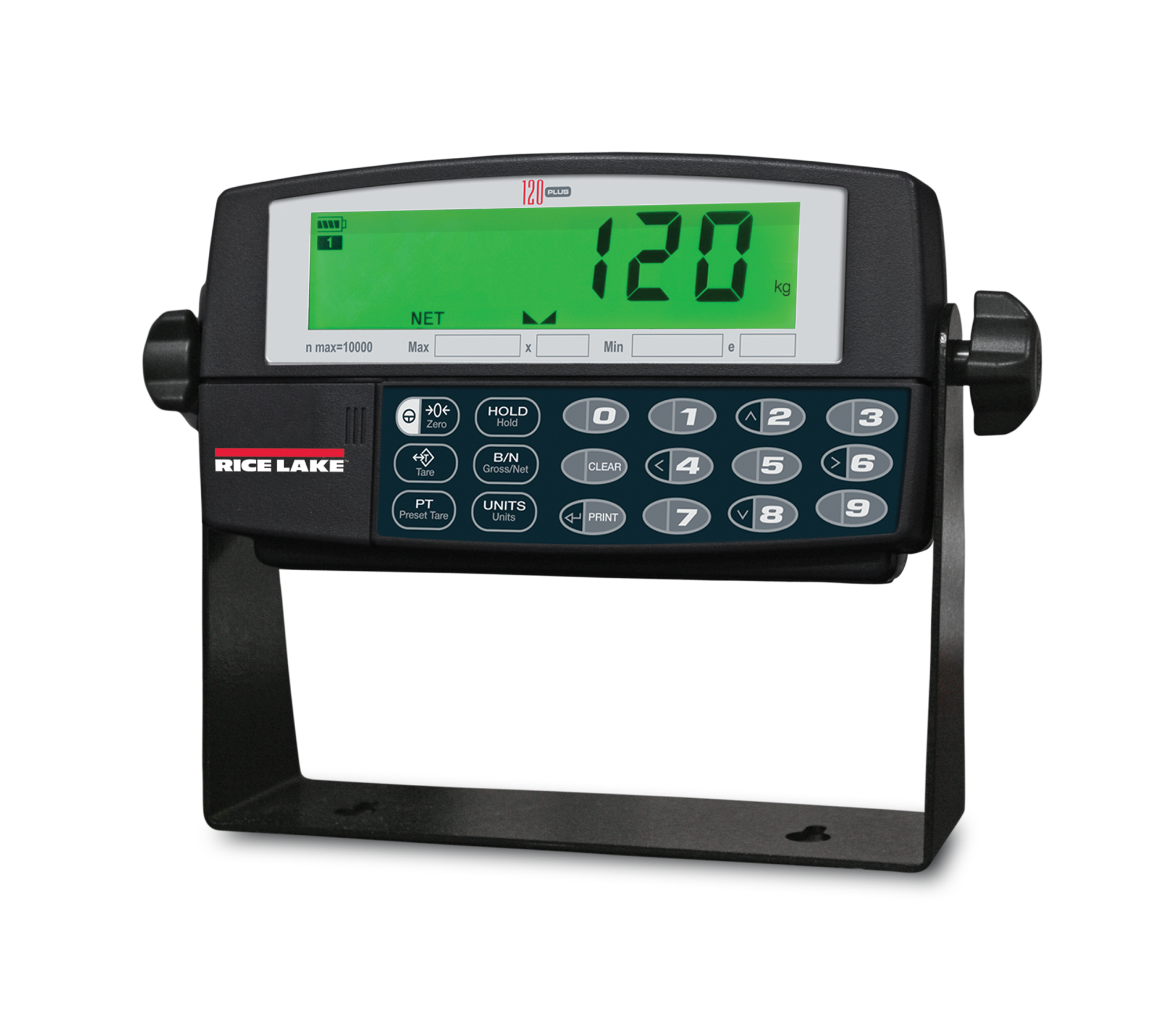

120 Plus

  • LCD display, 0.8in (20.3mm) six-digit, seven-segment
  • Internal rechargeable lithium battery and wall adapter
  • Power save feature for 700 hours of battery life
  • Ten stored tare values
  • Display hold (based on three second average)
  • Time and date
  • Configurable with Revolution® software
Request More Information

Sales Literature

Download

Where Economy and Performance Meet

With the 120/120 Plus digital weight indicator, there is no need to sacrifice quality for price. These digital weight indicators are designed to be a reliable, cost-effective solution for material handling or shipping and receiving applications. The 120/120 Plus drives up to four 350Ω load cells while three-stage digital filtering provides stable, accurate weight data. The 120/120 Plus's tactile front panel and easy-to-read display help to make scale operations effortless. Two independent communication ports provide full EDP and print ticket programmability.

120/120 Plus Specifications

Power:
120/120 Plus:
Line voltages: 115 or 230 VAC
Frequency: 50 or 60 Hz
120 Plus: (estimated battery life)
60 hours with 1 x 350Ω, 40 hours with 4 x 350Ω
Charge time eight hours

Excitation Voltage:
5 VDC, 4 x 350Ω or 8 x 700Ω load cells

Analog Signal Input Range:
-0.6 mV/V - 3.0 mV/V

Analog Signal Sensitivity:
0.3 μV/graduation minimum,
1.5 μV/grad recommended

A/D Sample Rate:
120: 3 to 30 Hz, software selectable
120 Plus: 30 Hz

Resolution:
Internal: 1 million internal graduations
Display: 10,000 displayed graduations

System Linearity:
Within 0.01% of full scale

Circuit Protection:
RFI, EMI, ESD protected

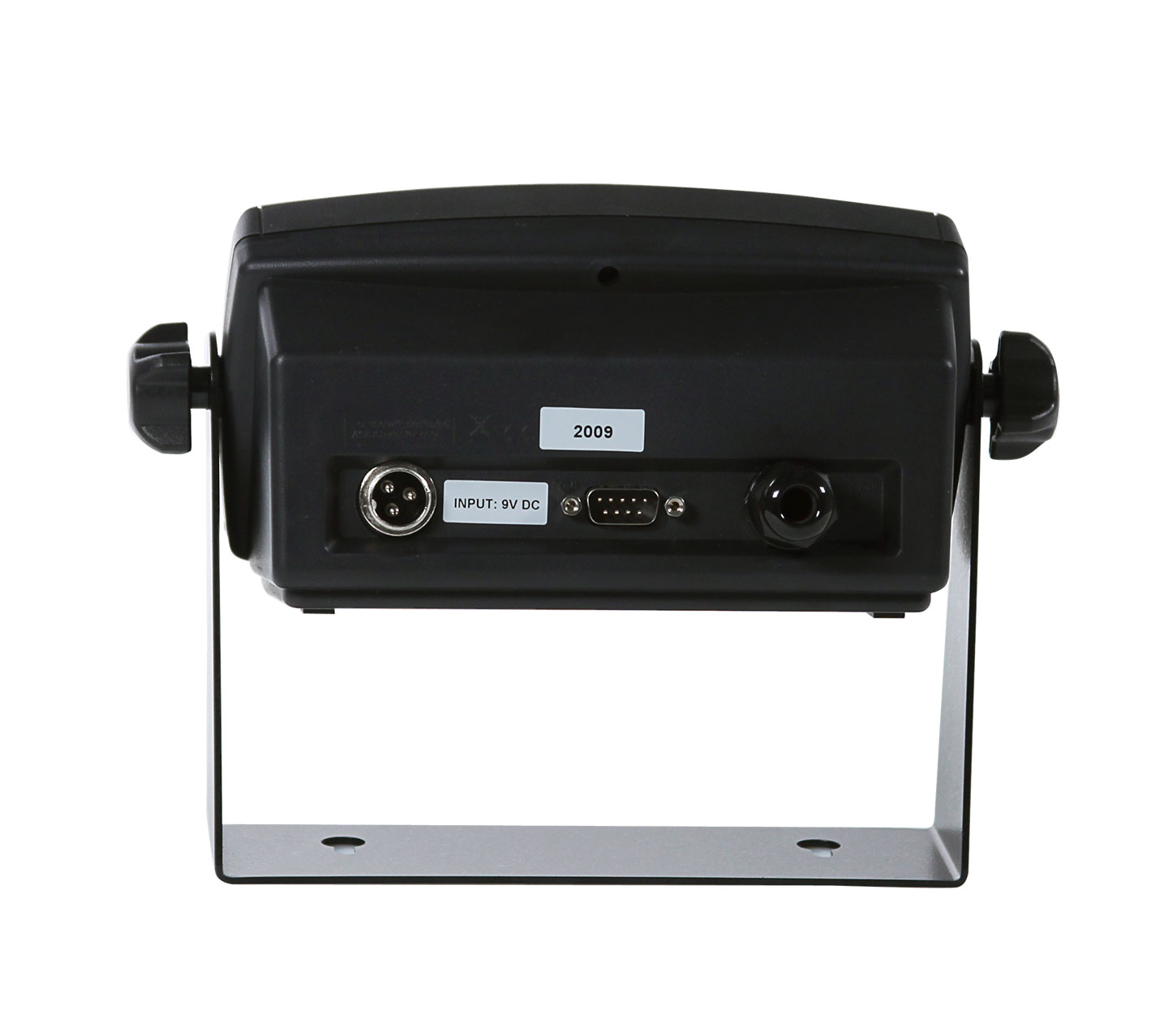

Load Cell Connection:
Cord grip entry
Detachable plug (optional)

Serial Output:
EDP port: Full duplex RS-232
Printer port: Output-only RS-232 or active 20mA current loop
Both ports: 9600, 4800, 2400, 1200, 600, 300bps;
Seven or eight data bits; even, odd or no parity

Status Annunciators:
120/120 Plus: Center of zero, stand still, gross, net, lb, kg, oz, g
120 Plus: Battery, setpoint 1 and 2, Hold

Display:
120: 0.8 in (20 mm), six-digit red light emitting diode
(LED) display, seven-segment digits
120 Plus: 0.8 in (20 mm) six-digit LCD with backlight, seven-segment digits

Keys/Buttons:
120: Five-key flat membrane panel, tactile feel
120 Plus: Zero, tare, preset tare, hold, gross/net, units, numeric 0-9, clear, enter/print

(Optional) Digital I/O:
120 Plus: Requires option card
24 volt source
Three digital inputs
Two digital outputs

Temperature Range:
Certified: 14°F to 104°F (-10°C to 40°C)
Operating: 14°F to 122°F (-10°C to 50°C)

Rating/Material:
Enclosure: heavy gauge ABS

Weight:
2.6 lb (1.2 kg)

Warranty:
One-year limited warranty

Approvals:
NTEP CC 03-059, Class III/IIIL 10,000d
Measurement Canada AM-5517, Class III/IIIHD 10,000d
EU Test Certificate TC7028 (120) Class III, 10,000d
EU Test Certificate TC7626 (120 Plus) Class III, 10,000d
CE marked
